12.1" Rugged High Brighntess/Sun Light Readable Marine LCD Display. Optional Elo SAW TouchScreen Model:(WPM-MAR-H1200M6)

Home » Our Products » Marine Monitor LCD » Marine LCD Display » 12" Sunlight Rugged Marine LCD » 12.1" Rugged High Brighntess/Sun Light Readable Marine LCD Display. Optional Elo SAW TouchScreen Model:(WPM-MAR-H1200M6)

ZOOM

12.1" , 800 x 600, 1000 nits, DVI, RGB, Composite, S-Video,PIP,Power On/Off, VR Brightness Knob, Power Mode Status LED, OSD, OSD Remote Control via RS-232,8V to 36 V DC to DC,Front Panel Sealed to IP65 / Rear IP54, 0 to +55 Deg Operational Temperature

Sale Price: $2,499.00

Availability: Contact us for availability

Data Sheet

Mounting Guide

Product Overview

Dimming 0~100%

Sunlight Readable

PIP

IP65 Proof

8- to36V DC input

Anti-Corrosion (Option)

OSD from panel

AR Safety Glass (option)

Touch Screen

Features:
Hyper Dimming	:Dimming knob control backlight brightness from nearly 0% to 100%
Sunlight Readable	:High brightness TFT-LCD panel enhance the best visibility
Ruggedized IP65 Proof	Panel (flush) mount IP65 aluminum housing with powder coating design (IP54 rear)
Wide Voltage Range Input	8 to 36V DC to DC power input acceptable(AC power for option)
Touchscreen	:High quality touchscreen / AR protection glass for option
IP65 OSD front panel Design	:Ease of use front panel OSD control
Anti-shock and Vibration	:Enhanced shock and vibration resistance

Specifications

TFT Characteristics
Pixel Number	800x600
Pixel Pitch(R&B)	0.3075 (H)x0.3075 (V)
Contrast Ratio	500 : 1(typ.)
Light Intensity	1000 (typ.)
Viewable Angle	-65~65 (H); -75~45 (V)
Active Display Area	246.0 (H)x184.5 (V)
Max Colors	16.7M (8bits/color)

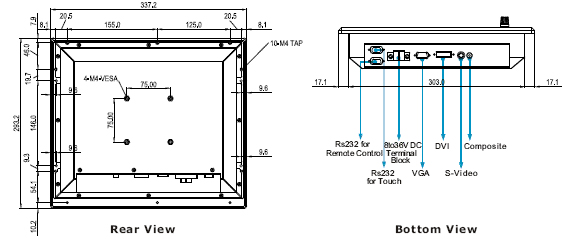

Input Signals
RGB Signal	D-SUB 15P connector(female)
Composite Video	RCA phono plug
S-Video Signal	S-Video (SVHS) plug
DVI-D Signal	DVI-D input 24pin connector
DC Power Signal	Screw terminal block
AC Power Signal (Optional)	Std IEC Inlet
Touch Screen (Optional)	D-SUB 9P connector (female)
Remote via RS-232 (Optional)	D-SUB 9P connector (female)
User Controls
Power On/Off via front button VR Brightness Knob Control On Screen Display control(OSD) OSD Remote Control via RS-232 Power Mode Status LED
Power Specification
Power Supply Options	8 to 36 V DC to DC power supply with terminal block. 90 to 265 V AC (optional)
Power Consumption	53 W typical, normal operation
Environmental Considerations
Operating Temperature	-10 to 55 deg.C (-20 to 60 deg.C for optional heating)
Humidity	5% to 95% (non condensing)
Anti-Vibration	5Hz~500Hz / 1Grms/3 Axis
Anti-Shock	15G, 11ms duration
Available Options

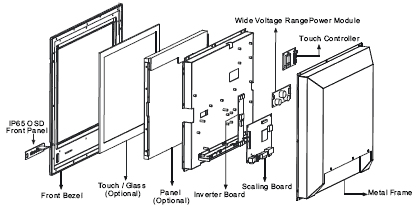

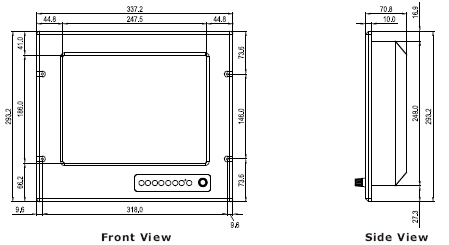

Mechanical Options	Panel (Flush) mount with IP65 (SAW touch for IP54)
Touch Screen Options	SAW, 5 Wire Resistive
AR Safety Glass Option	3mm Anti-reflective protection glass
VESA Mounting	Yes
Certification and Approvals
Certification	CE, FCC
Approvals	DNV Type Approval (Pending)

Option

Touch Screen Selection

None

Elo Saw Touchscreen with RS232 Controller (+$361)

Elo Saw Touch Screen with USB Controller(+$368)

Customize Price : $2,499.00 TOP
