10.4" Rugged Transflective Sun Light Readable Marine LCD Display 670 Nits. Optional Elo SAW TouchScreen Model:(WPM-MAR1040M2)
10.4" , 800 x 600, 400 nits, DVI, RGB, Composite, S-Video,PIP,Power On/Off, VR Brightness Knob, Power Mode Status LED, OSD, OSD Remote Control via RS-232,8V to 36 V DC to DC,Front Panel Sealed to IP65 / Rear IP54, 0 to +55 Deg Operational Temperature
:Dimming knob control backlight brightness from nearly 0% to 100%
Sunlight Readable
:Transflective film technology enhance visibility
Ruggedized IP65 Proof
Panel (flush) mount IP65 aluminum housing with powder coating design
(IP54 rear)
Wide Voltage Range Input
:8 to 36V DC to DC power input acceptable
Touchscreen
:High quality touchscreen / AR protection glass for option
Multiscan function
PIP(picture in picture) function and multi-video inputs
IP65 OSD front panel Design
:Ease of use front panel OSD control
Anti-shock and Vibration
:Enhanced shock and vibration resistance
Specifications
TFT Characteristics
Pixel Number
800 x 600
Pixel Pitch(R&B)
0.264 (H) x 0.264 (V)
Contrast Ratio
500 : 1(typ.)
Light Intensity
560 (typ.)
Viewable Angle
-70~70 (H); -60~50 (V)
Active Display Area
211.2 (H) x 158.4 (V)
Max Colors
16.7M (8bits/color)

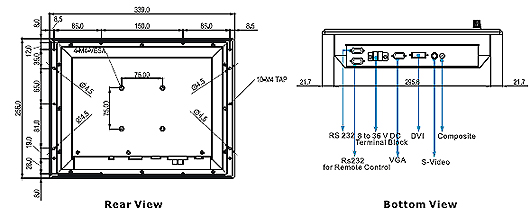

Input Signals
RGB Signal
D-SUB 15P connector(female)
Composite Video
RCA phono plug
S-Video Signal
S-Video (SVHS) plug
DVI-D Signal
DVI-D input 24pin connector
DC Power Signal
Screw terminal block
Touch Screen (Optional)
D-SUB 9P connector (female)
Remote via RS-232 (Optional)
D-SUB 9P connector (female)
User Controls
Power On/Off via front button
VR Brightness Knob Control
On Screen Display control(OSD)
OSD Remote Control via RS-232
Power Mode Status LED
Power Specification
Power Supply Options
24 V DC to DC power supply with terminal block
Power Consumption
21 W typical, normal operation
Environmental Considerations
Operating Temperature
-10 to 55 deg.C (-20 to 60 deg.C for optional heating)
Humidity
5% to 95% (non condensing)
Anti-Vibration
5Hz~500Hz / 1Grms/3 Axis
Anti-Shock
15G, 11ms duration
Available Options
Mechanical Options

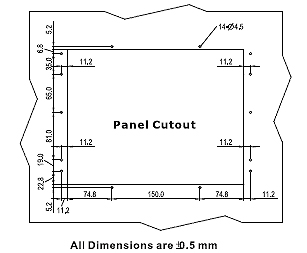

Panel (Flush) mount with IP65 (SAW touch for IP54)
Touch Screen Options
SAW, 5 Wire Resistive
AR Safety Glass Option
3mm Anti-reflective protection glass
VESA Mounting
Yes
Certification and Approvals
Certification
IEC 60945, DNV 2.4, IACE-E10
Approvals
DNV Type Approval, CE, FCC ClassB
Outdoor Readability
Ambient light(nit)
10,000
30,000
80,000
Brightness gain (nit)
437.5
670
1,150
Reflectance(net)(%)
1.20%
1.15%
1.16%
Note
*Equivalent brightness under sunlight.
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements
